Avnet DAC5682Z Module 1Gsps 2CH

AES-HSDAC-EXP

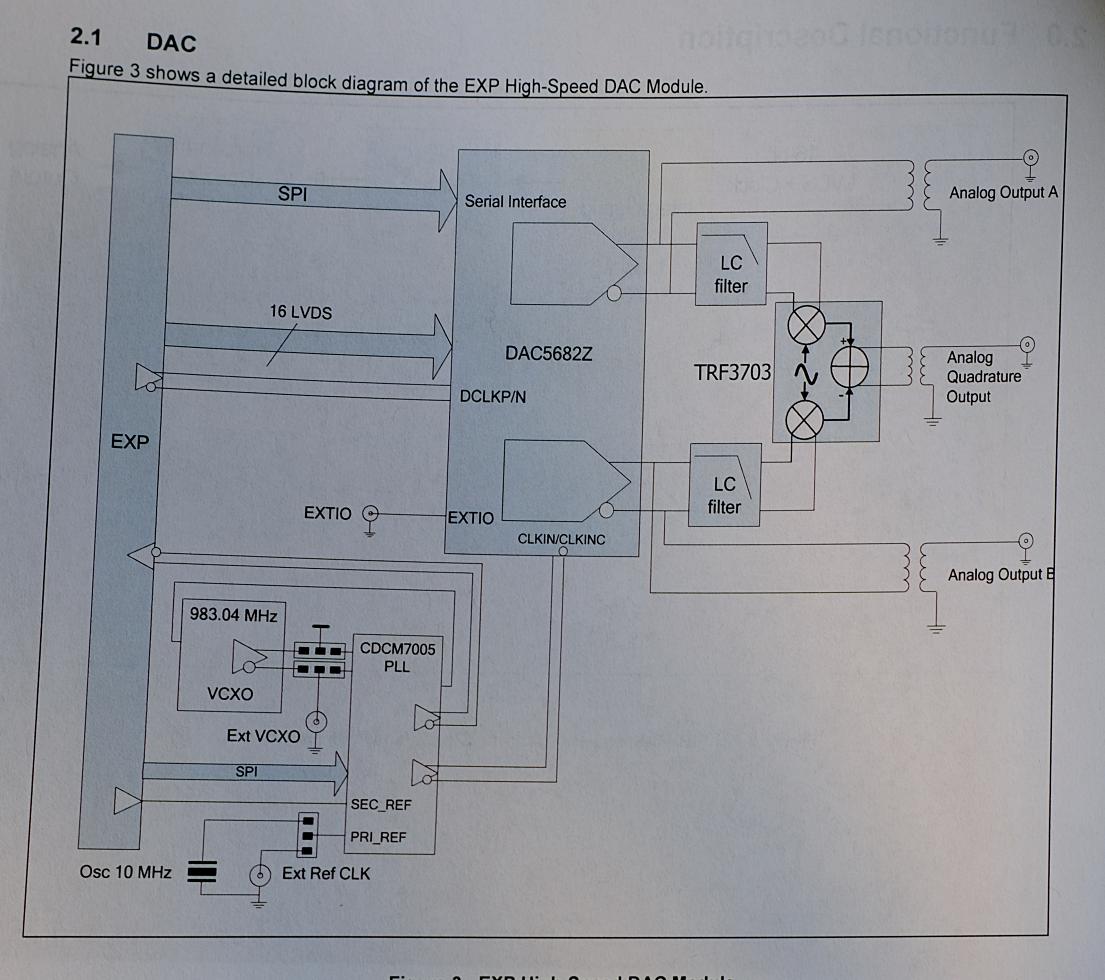

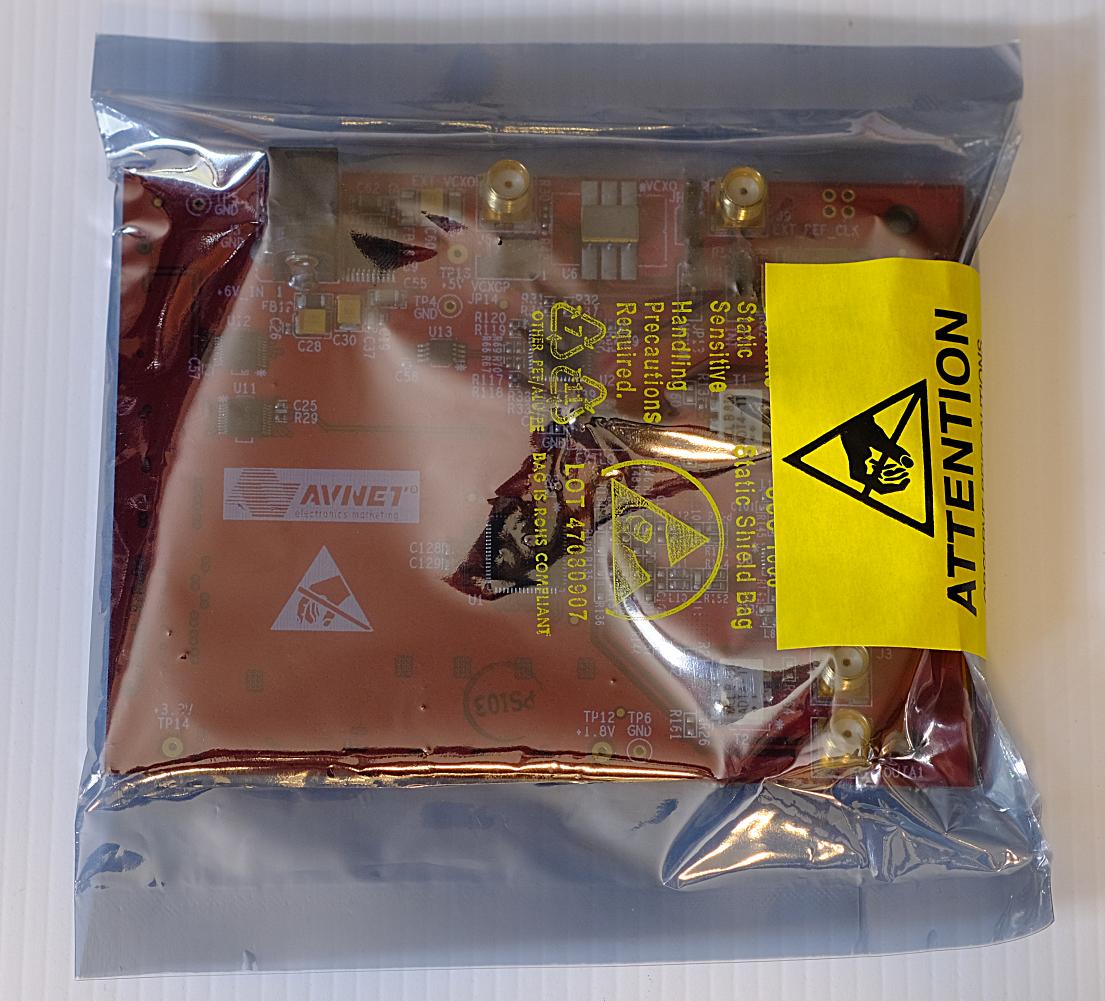

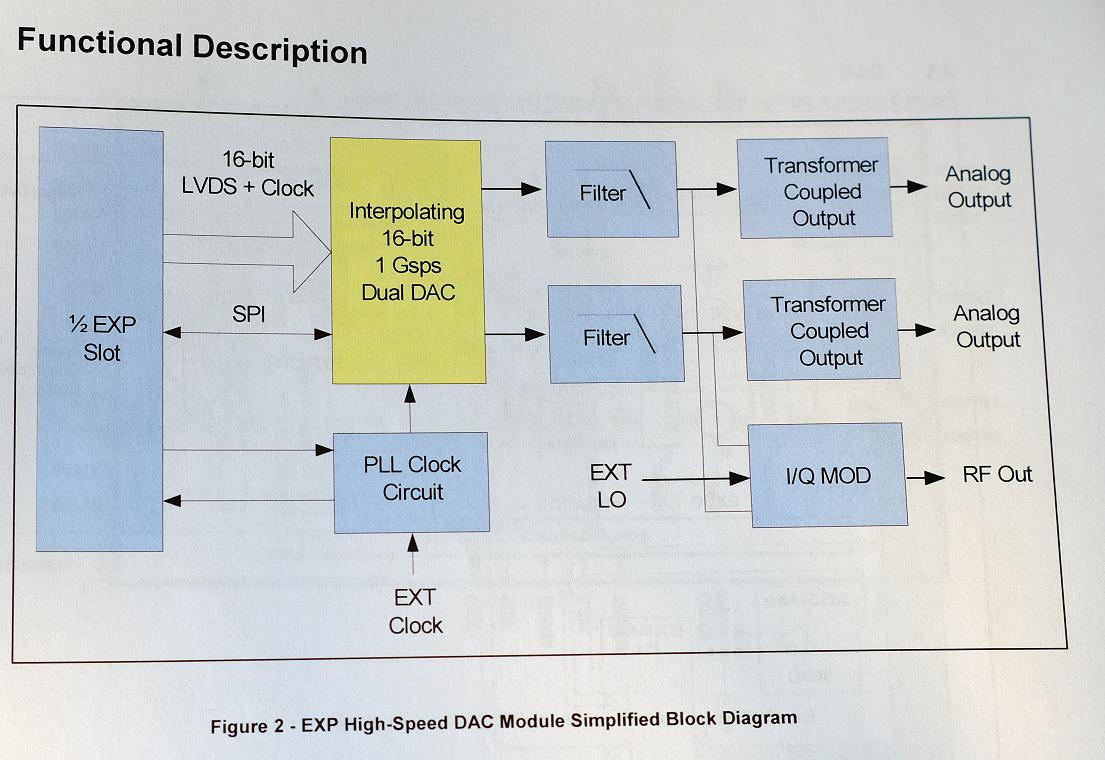

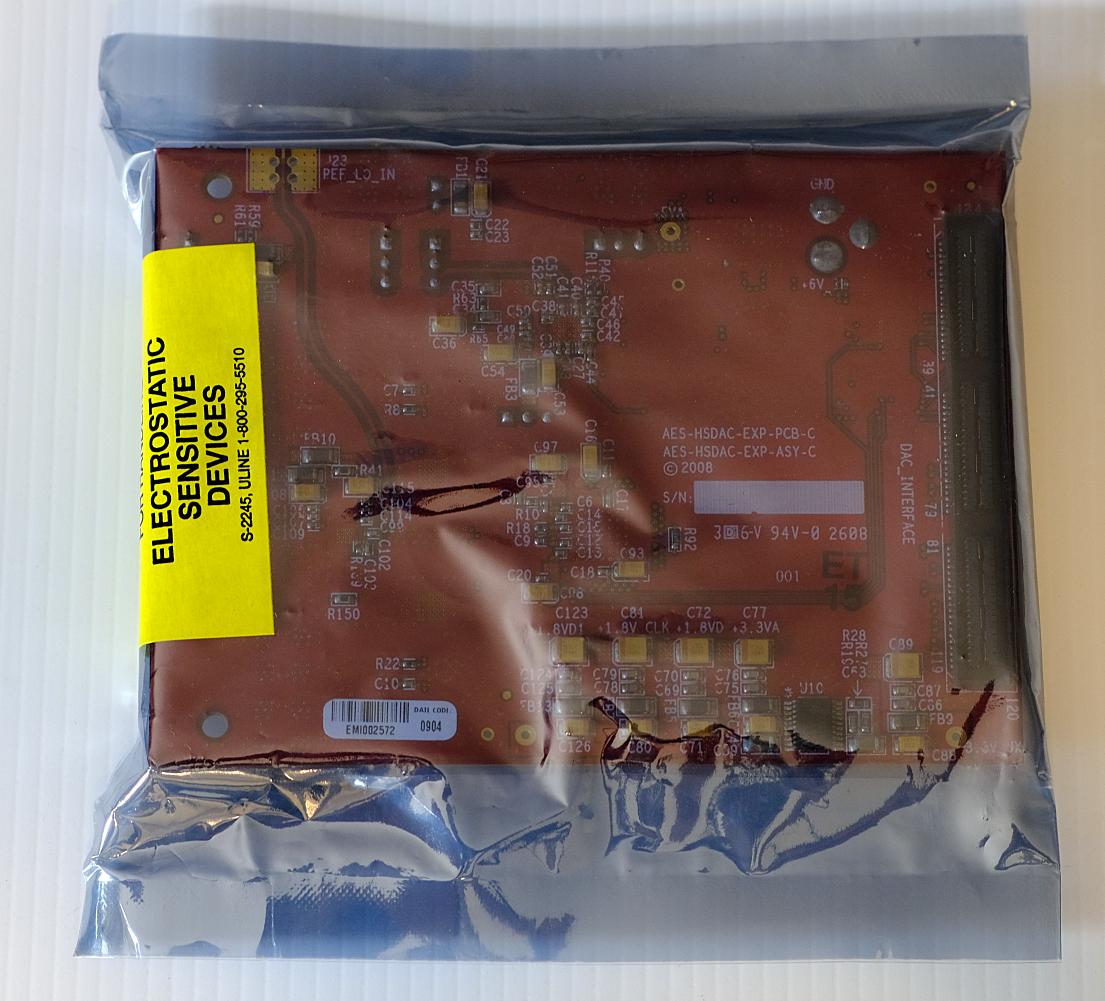

Avnet DAC module

Includes downloadable Documentations: User manual(Sch) , Design files, ...

DAC5682Z

Number of DAC's: 2

Number of Bits: 6

Sampling Rate (Per Second): 1G

Data Interface: Parallel

Settling Time: 10.4ns

DAC Type: Current

Utilized IC / Part: DAC5682Z

EXP Interface

The Avnet EXP specification defines a 132-pin connector, with 24 power (twelve +2.5V and twelve +3.3V), 12 grounds, 84 user I/Os and 12 additional connector ground “blades”. EXP configuration implemented on all baseboards uses two connectors (Samtec part number QTE060-09-F-D-A) and EXP modules may be designed with either one or two EXP connectors (Samtec part number QSE-060-01-F-D-A).
