Avnet FPGA interface 1 Module

AES-ITF1-EXP

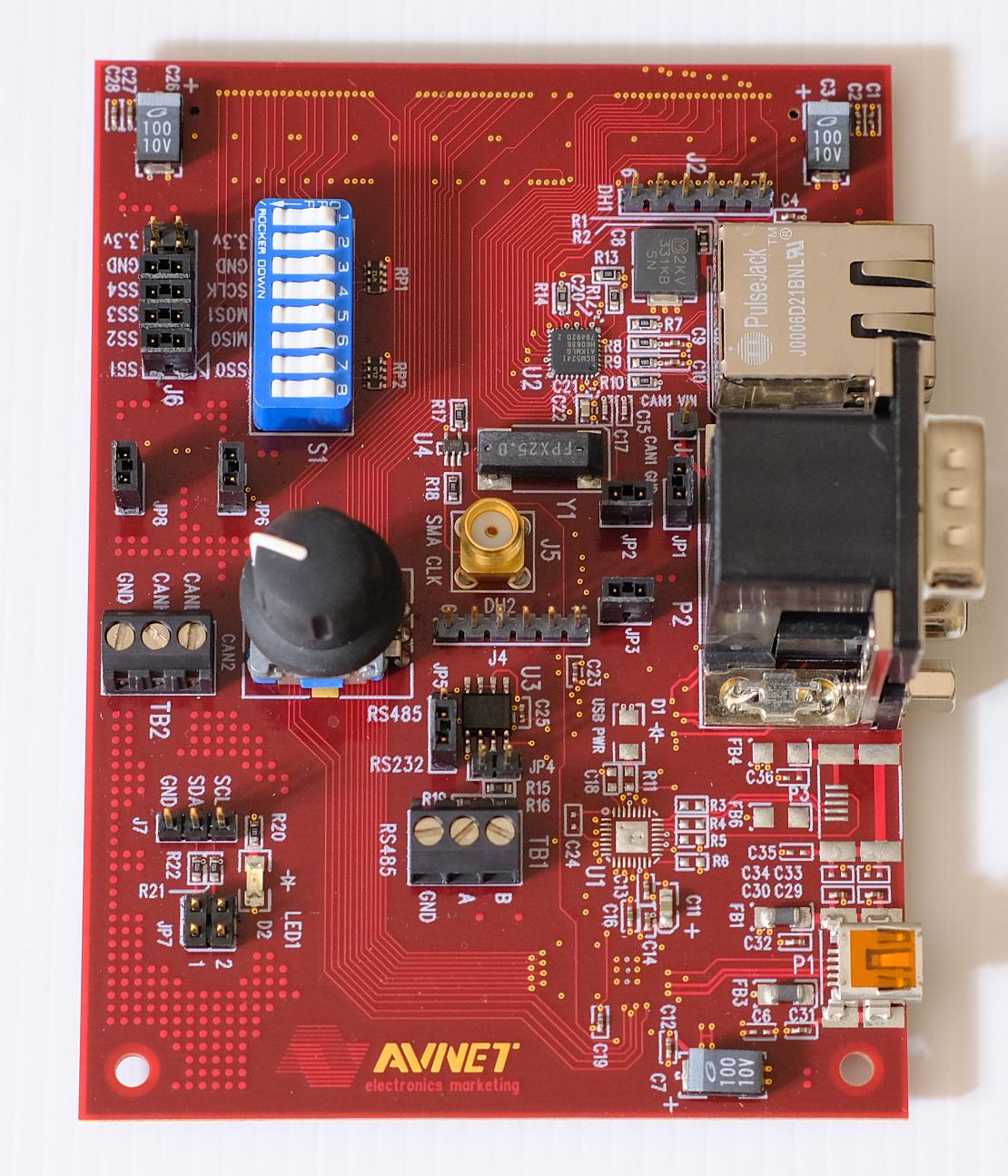

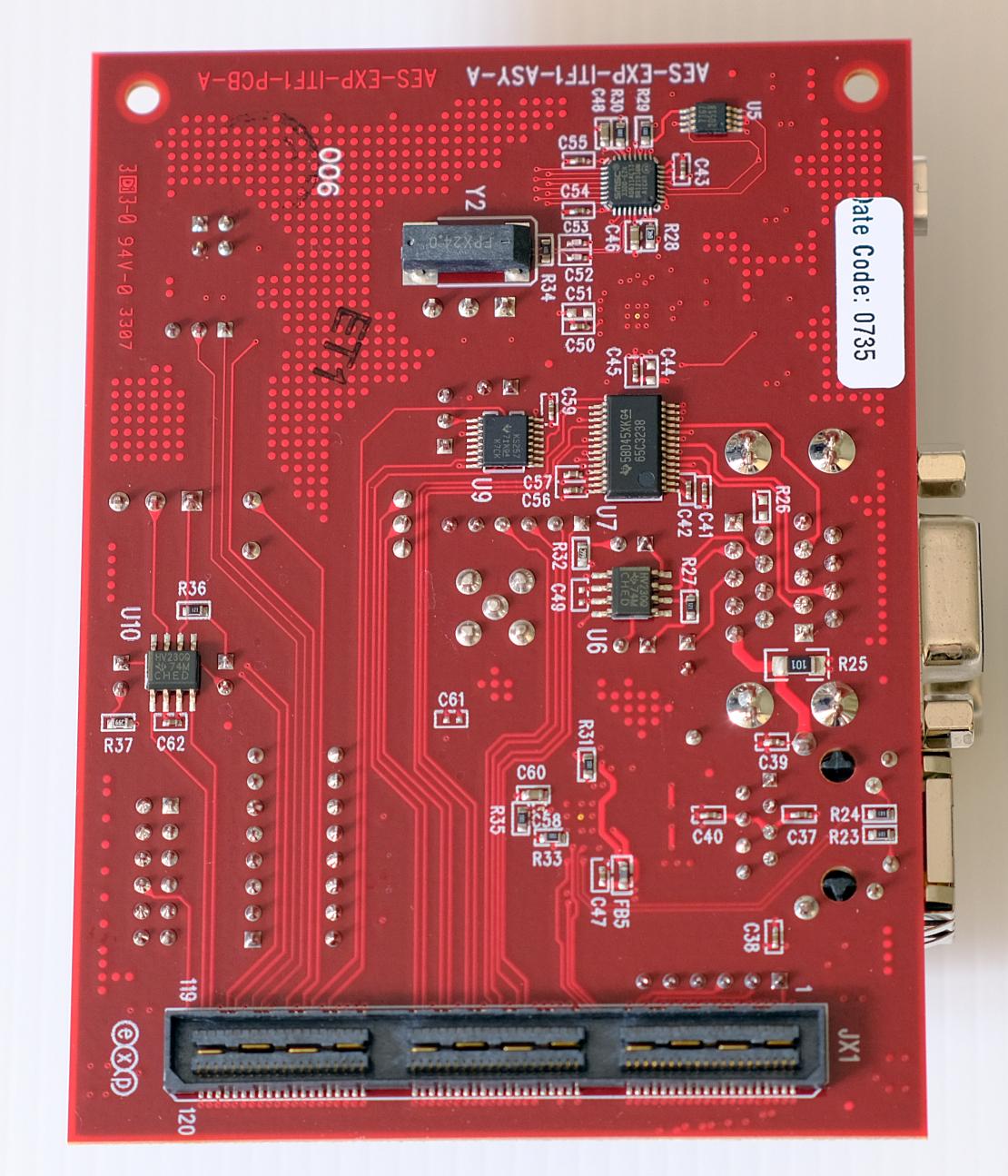

Avnet FPGA interface Module for FPGA

Features:

• Ethernet

• RS232 / RS485

• Dip switch

• USB

• CAN bus

• I2C

• SPI

Purchase includes downloadable documentations and design files

EXP Interface

The Avnet EXP specification defines a 132-pin connector, with 24 power (twelve +2.5V and twelve +3.3V), 12 grounds, 84 user I/Os and 12 additional connector ground “blades”. EXP configuration implemented on all baseboards uses two connectors (Samtec part number QTE060-09-F-D-A) and EXP modules may be designed with either one or two EXP connectors (Samtec part number QSE-060-01-F-D-A).
