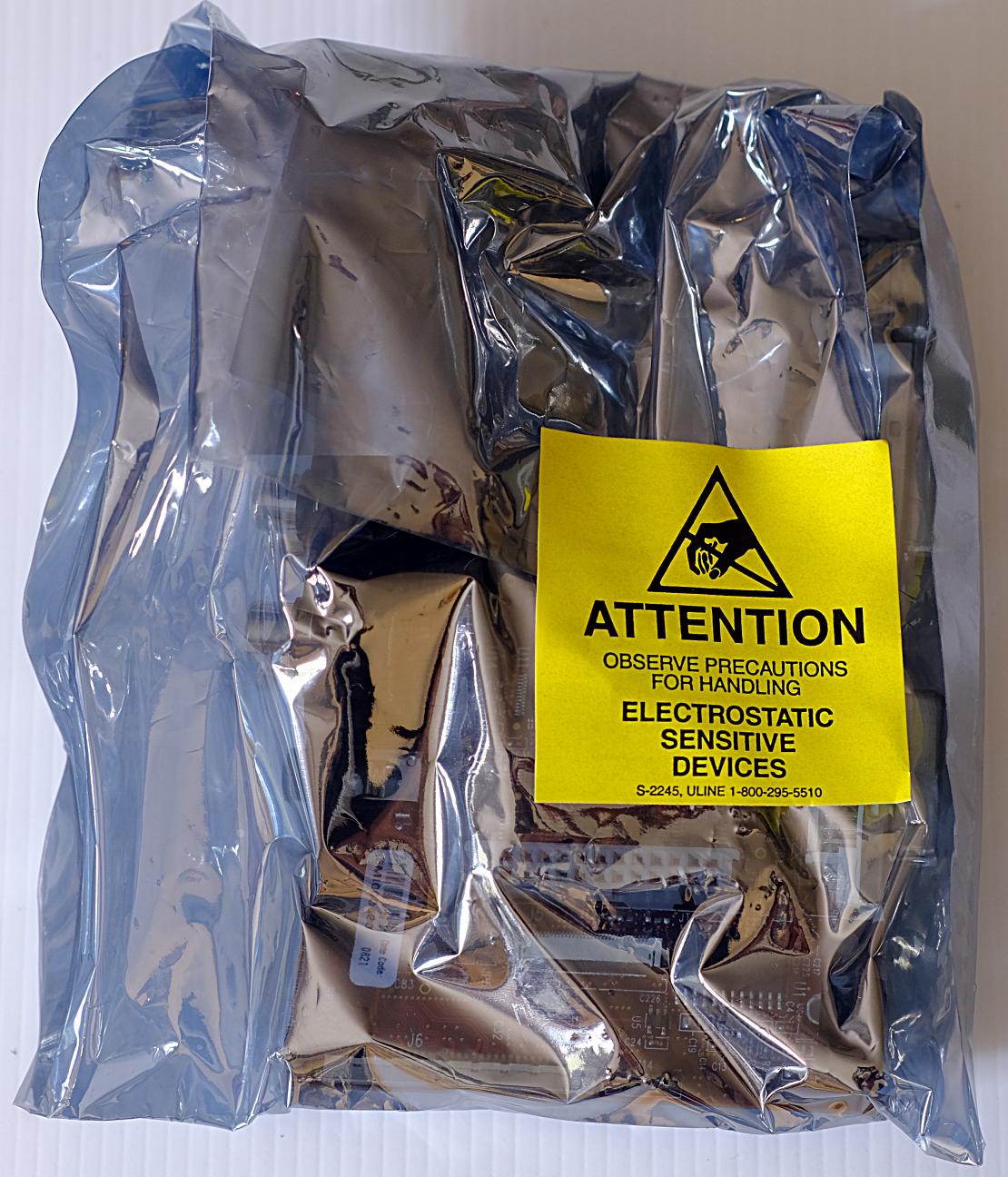

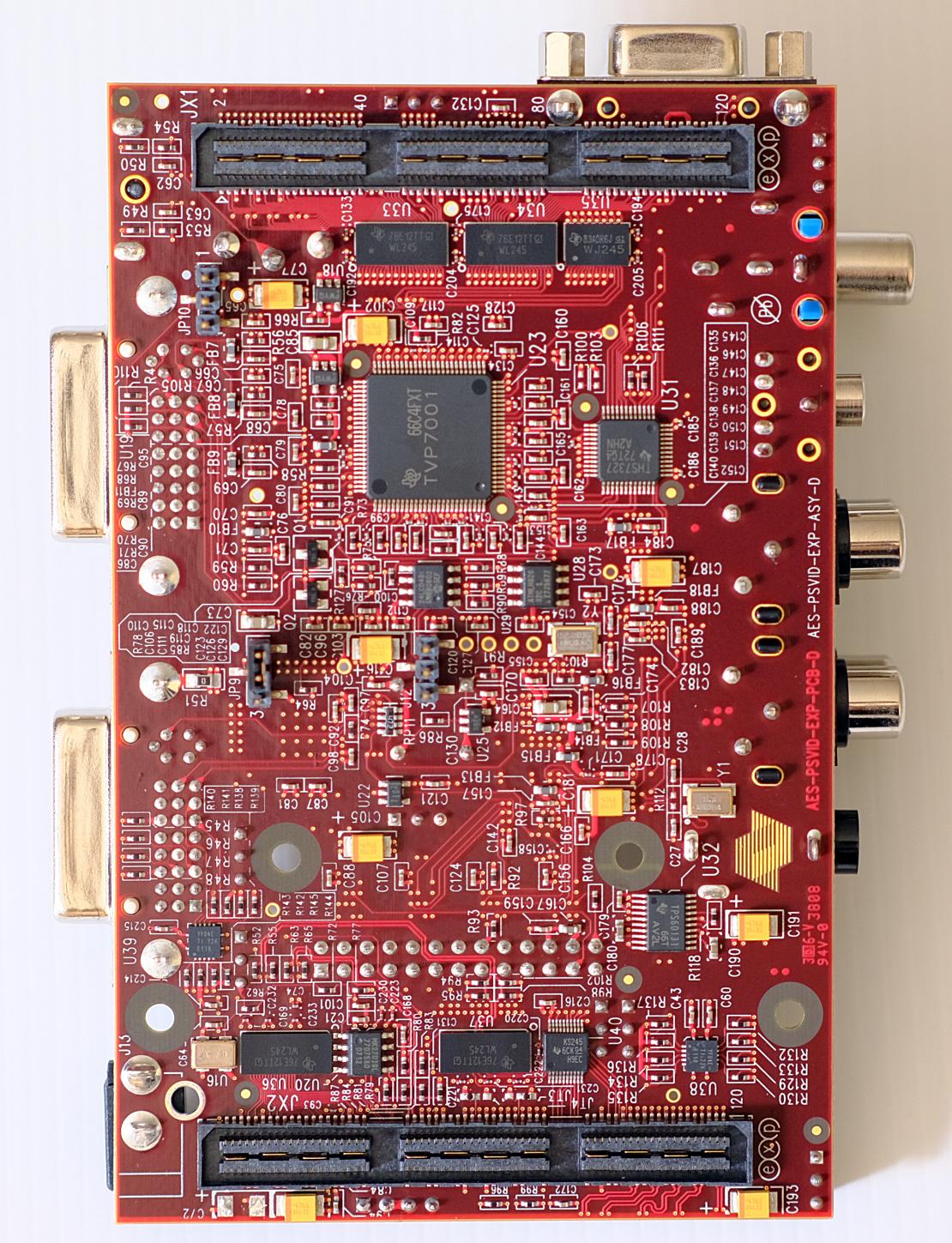

Avnet Video FPGA Module

AES-PSVID-EXP

Purchase includes downloadable documentations and design files

EXP Interface

The Avnet EXP specification defines a 132-pin connector, with 24 power (twelve +2.5V and twelve +3.3V), 12 grounds, 84 user I/Os and 12 additional connector ground “blades”. EXP configuration implemented on all baseboards uses two connectors (Samtec part number QTE060-09-F-D-A) and EXP modules may be designed with either one or two EXP connectors (Samtec part number QSE-060-01-F-D-A).
