XtremeDSP Starter Platform - Spartan-3A DSP 1800A Edition

Xilinx XtremeDSP Starter Platform - Spartan-3A DSP 1800A Edition (New - Sealed)

Xtreme DSP (High-Performance)

Box includes:

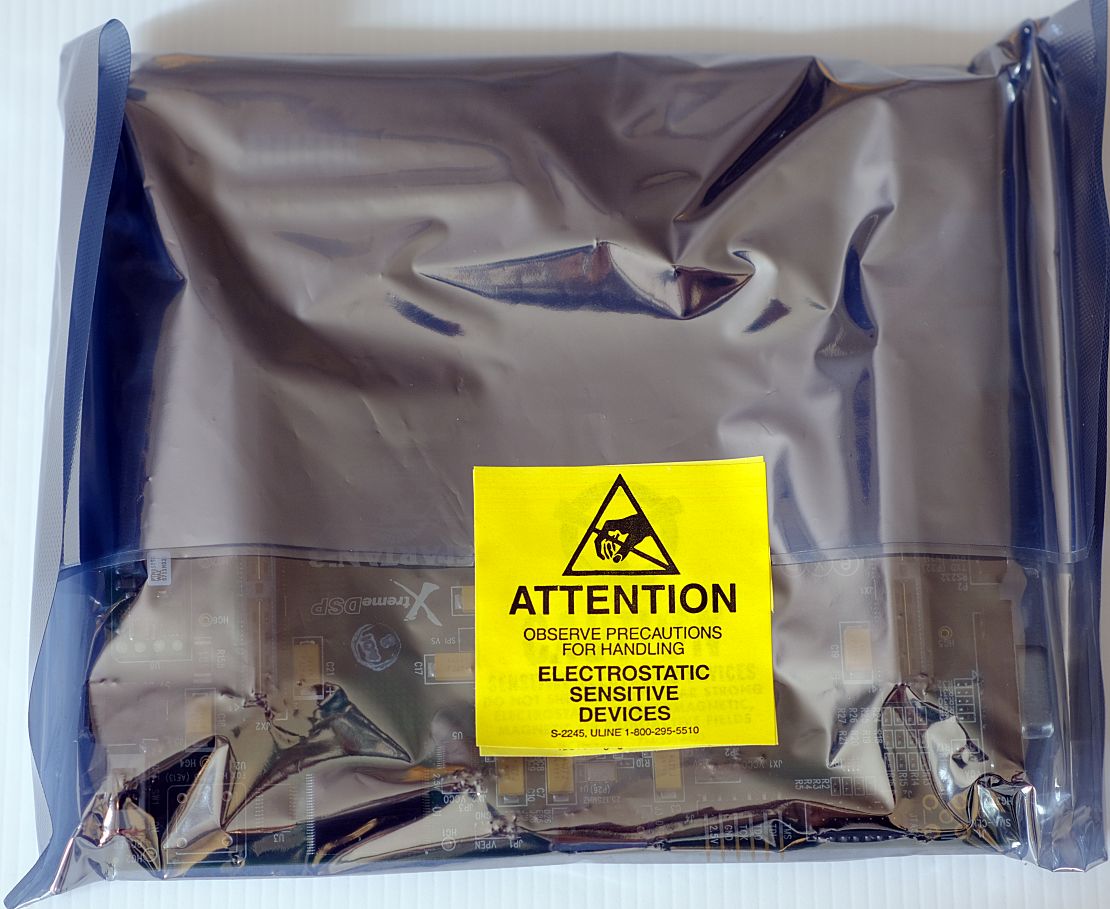

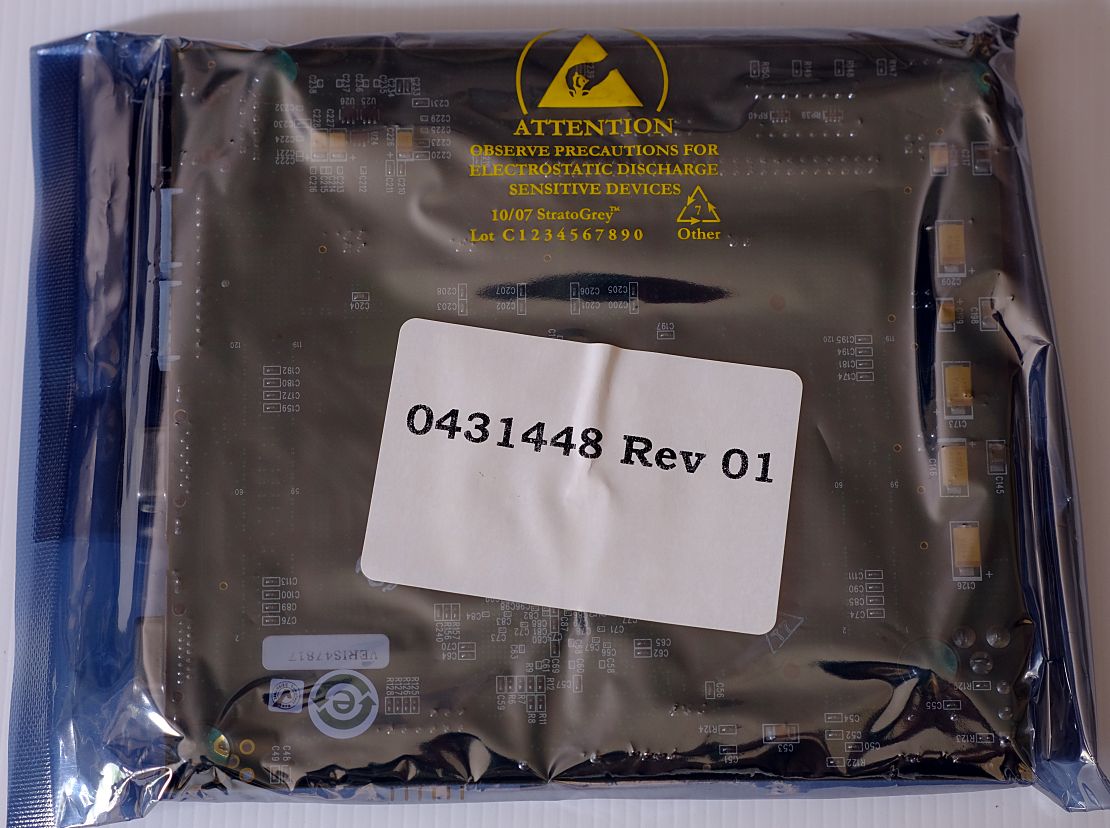

• Spartan-3A DSP 1800A Board (HW-SD1800A-DSP-SB)

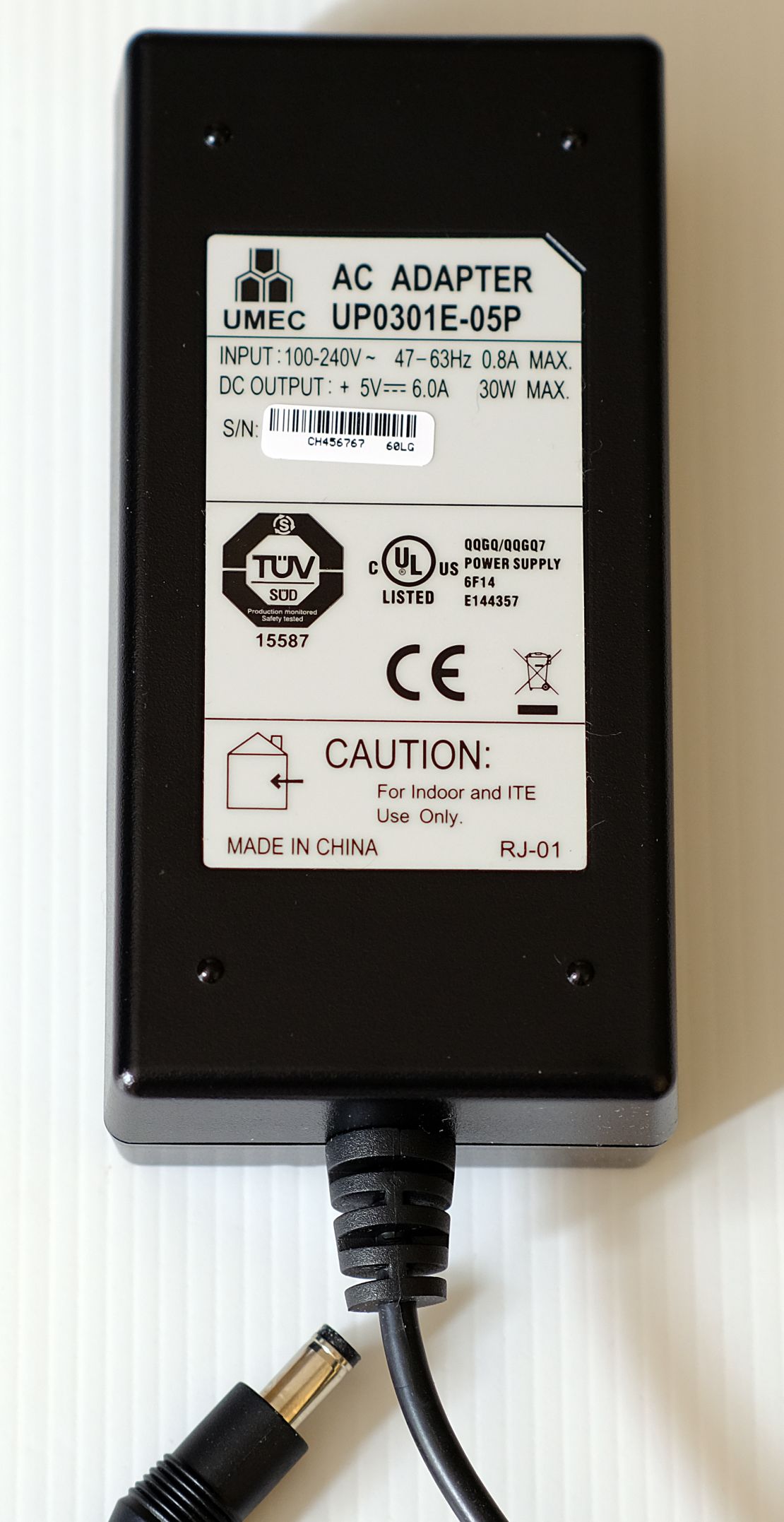

• Original Power Supply (5V, 6A, RoHS compliant wall transformer)

The Spartan-3A DSP Starter Platform provides the following features:

• Xilinx 3SD1800A-FG676 FPGA

• Clocks

  • 125 MHz LVTTL SMT oscillator

  • LVTTL oscillator socket

  • 25.175 MHz LVTTL SMT oscillator (video clock)

• Memory

  • 32M x 32 (128 MB) DDR2 SDRAM

  • 16Mx8 parallel and BPI configuration flash

  • 64Mb SPI Configuration and Storage Flash (with 4 extra SPI selects)

• Interfaces

  • 10/100/1000 PHY

  • JTAG programming and configuration Port

  • RS232 Port

  • Low-cost VGA

• Buttons and switches

  • 8 User LEDs

  • 8-position user DIP switch

  • 4 User push button switches

  • Reset push button switch

  • User I/O and expansion

  • Digilent 6-pin header (2)

  • EXP expansion connector (2)

• Configuration and debug

  • JTAG

  • SystemACE™ module connector

  • Eridon debug connector (SATA)
